- Size: 0.26
- Place of Origin: China
- Brand Name: chenfa
- Model Number: 004
- Weight: 45.000 kg

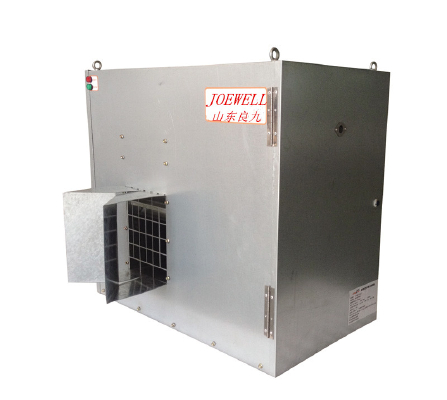

Direct-fired heat fan with natural gas, liquefied petroleum gas as fuel, with air as heating medium, through the circulation fan forced circulation, heat output.
High quality components and solid stainless steel desig
Heated the livestock shed
Provide greenhouses heating and CO2
All types of plant heating
All types of plant heating | |||
Equipment model | GH50-ZR | GH60-ZR | GH70-ZR |
The output power（KW） | 50 | 60 | 70 |
Heating area | 150m2—200m2 | 200m2---250m2 | 250m2—300m2 |
fuel | Gas/liquid gas | ||
Gas consumption | |||
Natural gas(m3/h) | 4.75 | 5.62 | 6.61 |
Liquefied petroleum gas（kg/h） | 3.73 | 4.43 | 5.23 |
The gas inlet pressure | |||
Natural gas( | 2-5kpa | ||
Liquefied petroleum gas | 3.2-5kpa | ||
Gas pipe joint | IS07Rp 1/2inches | ||
Protection grade | IP40 | ||
The power supply | 220V 50HZ Running current2.0A | ||
Inspection standard | GB16914-2003(Gas burning appliance safety technical regulations) | ||
The equipment size | Length * width * height 780mm*460mm*720mm | ||
